Eppendorf

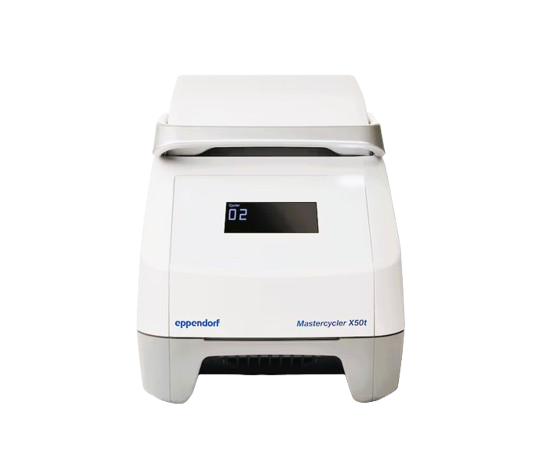

Mastercycler X50

Mastercycler X50
Image courtesy of Eppendorf

96-well thermal cycler with 2D-gradient for fast PCR optimization and high throughput.

Overview

The Mastercycler X50 combines speed, flexibility, and advanced PCR optimization. With a 2D-gradient function you can simultaneously optimize denaturation and annealing temperatures, cutting optimization time significantly. It features rapid heating up to 10°C/s, cooling up to 5°C/s, and can be networked to control up to 10 units via the touchscreen interface.

Specifications

Block Format 96-well aluminum block for 0.2 mL tubes or 1 x 96-well plate
Temperature Range 4°C to 99°C
Gradient Range 1–30°C
Gradient Temperature Range 30–99°C
Max Heating Rate 10°C/sec
Max Cooling Rate 5°C/sec
Display 7" Color Touchscreen
Connectivity Ethernet, USB; Network up to 10 units
Dimensions 27.5 x 43 x 33 cm (W x D x H)
Weight 11.5 kg
Power Supply 110 V / 230 V, 50-60 Hz
Downstream Molecular Validation

Molecular Readout
Systems

Luminescence, fluorescence, and post-PCR molecular interpretation for integrated amplification workflows.

Explore GloMax
Promega GloMax Detection Systems

Complete Your Workflow

Optimized consumables and reagents for Mastercycler X50

Plates & Tubes

Eppendorf twin.tec PCR Plates 96-Well

SKU: 0030128648

Desain dual-material dengan rok polikarbonat kaku menjamin stabilitas dimensi optimal untuk integrasi sistem otomatisasi lab.

Type: Semi-skirted
Well Material: Polypropylene
Color: Clear / White Wells
Plates & Tubes

Eppendorf PCR Tubes 0.2 mL

SKU: 0030124330

Tutup fleksibel dengan pelindung kontaminasi memastikan segel rapat yang andal selama siklus termal intensitas tinggi.

Volume: 0.2 mL
Cap Type: Flat / Hinged
Purity: PCR Clean
Plates & Tubes

Eppendorf PCR 8-Tube Strips

SKU: 0030124356

Ketebalan dinding tabung yang sangat tipis dan seragam menghasilkan transfer panas ultra-cepat dari blok aluminium Mastercycler.

Format: 8-Tube Strip
Volume: 0.2 mL
Caps: Included (Flat)
PCR Reagents

Eppendorf MasterMix

SKU: 0032001

Formulasi siap pakai 2.5X yang meminimalkan kesalahan pipetting dan dioptimalkan untuk hasil yield amplifikasi yang konsisten.

Concentration: 2.5X
Self-Adhesive: Optimized Viscosity
Application: Standard PCR
PCR Reagents

Eppendorf Taq DNA Polymerase

SKU: 0032001001

Enzim rekombinan murni berkekuatan tinggi, dirancang khusus untuk fleksibilitas suhu annealing pada rentang 2D-Gradient.

Concentration: 5 U/µL
Buffer: 10X PCR Buffer incl.
Source: Recombinant E. coli
