Bio-Rad

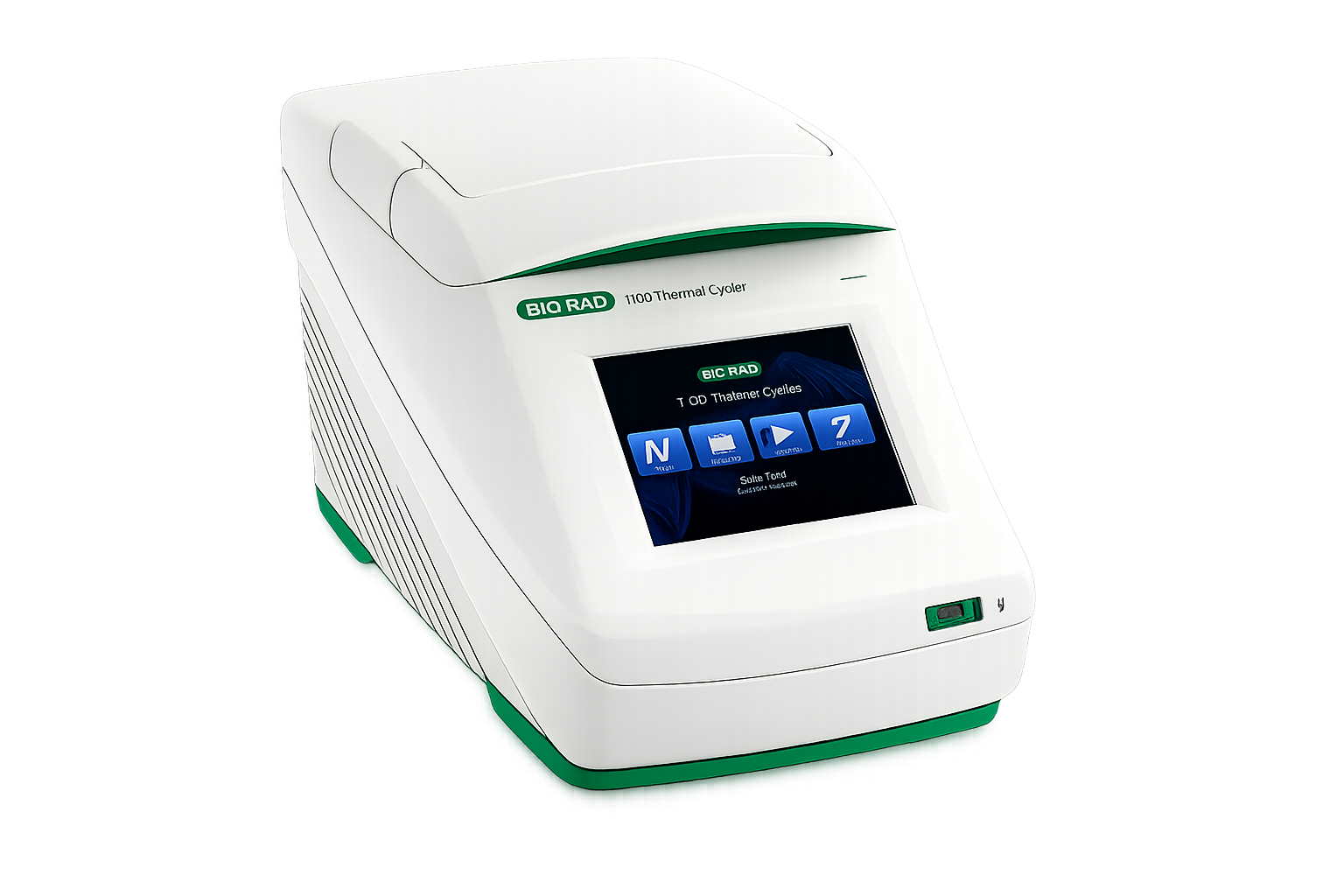

T100 Thermal Cycler

T100 Thermal Cycler
Image courtesy of Bio-Rad

Compact 96-well thermal cycler with gradient capability for reliable PCR.

Request Quote

Overview

The T100 Thermal Cycler is a compact, reliable 96-well PCR instrument with an intuitive 5.7" color touchscreen. It features thermal gradient technology for easy optimization, precise temperature control, and a small footprint ideal for teaching and research labs.

Specifications

Sample Capacity 96 x 0.2 mL tubes, 0.2 mL tube strips, or 1 x 96-well plate
Max Ramp Rate 4°C/sec
Average Ramp Rate 2.5°C/sec
Temperature Range 4°C to 100°C
Temperature Accuracy ±0.5°C of programmed target
Temperature Uniformity ±0.5°C well-to-well within 30 sec of arrival at target
Gradient Range 30–100°C
Gradient Differential 1–25°C
Display 5.7" VGA Color Touchscreen
Connectivity 1 USB A port
Memory 500 typical programs; unlimited with USB flash drive
Dimensions 26 x 47 x 23 cm (W x D x H)
Weight 9 kg
Power Requirements 100–150 VAC, 50–60 Hz; 220–240 VAC, 50–60 Hz; 700 W max
Downstream Molecular Validation

Molecular Readout
Systems

Luminescence, fluorescence, and post-PCR molecular interpretation for integrated amplification workflows.

Explore GloMax
Promega GloMax Detection Systems

Complete Your Workflow

Optimized consumables and reagents for T100 Thermal Cycler

Plates & Tubes

Hard-Shell 96-Well PCR Plates

SKU: HSP9601

Mencegah distorsi dan pengerutan plat akibat suhu panas tinggi berkat desain rigid shell, sangat ideal untuk akurasi pipetting robotik.

Type: Full skirted
Material: Polycarbonate frame
Well Color: Clear
Request Quote
Plates & Tubes

Low-Profile 96-Well PCR Plates

SKU: MLL9601

Mengurangi dead space udara di dalam sumur sampel untuk mempercepat transfer energi termal dan meminimalkan kondensasi.

Profile: Low-profile
Type: Unskirted
Well Capacity: 0.1 mL
Request Quote
Plates & Tubes

PCR 8-Tube Strips

SKU: TLS0801

Memastikan penutupan segel yang rapat secara individu untuk menghindari penguapan sampel selama pengujian gradien dinamis.

Format: 8-tube strip
Volume: 0.2 mL
Cap Type: Ultra-clear flat caps
Request Quote
PCR Reagents

iTaq Universal SYBR Green Supermix

SKU: 1725121

Reagen siap pakai yang diperkuat dengan antibodi hot-start iTaq untuk efisiensi amplifikasi tinggi pada instrumen qPCR maupun reguler.

Concentration: 2X Mix
Control: ROX Passive Reference
Chemistry: SYBR Green I
Request Quote
PCR Reagents

iProof High-Fidelity DNA Polymerase

SKU: 1725301

Menghasilkan replikasi fragmen DNA panjang dengan tingkat akurasi tinggi serta mempersingkat waktu ekstensi secara signifikan.

Fidelity: 52X higher than Taq
Format: Standalone Kit
Extension Time: 15–30 sec/kb
Request Quote
